Offensive Security Tool: Freeze

Reading Time: 2 Minutes

Freeze

Freeze by Optiv is a payload creation tool used for circumventing EDR security controls to execute shellcode in a stealthy manner. Freeze utilizes multiple techniques to not only remove Userland EDR hooks but to also execute shellcode in such a way that it circumvents other endpoint monitoring controls. A great tool for the Red Team, Pentesters for Post Exploitation techniques, especially bypassing methodologies used with hooks and shellcode being executed to get a shell.

Creating A Suspended Process

When a process is created, Ntdll.dll is the first DLL that is loaded. This happens before any EDR DLLs are loaded. This means that there is a bit of a delay before an EDR can be loaded and start hooking and modifying the assembly of system DLLs. In looking at Windows syscalls in Ntdll.dll, we can see that nothing is hooked yet. If we create a process in a suspend state (one that is frozen in time), we can see that no other DLLs are loaded, except for Ntdll.dll. You can also see that no EDR DLLs are loaded, meaning that the syscalls located in Ntdll.dll are unmodified.

Address Space Layout Randomization

In order to use this clean suspended process to remove hooks from Freeze loader, we need a way to programmatically find and read the clean suspended process’ memory. This is where address space layout randomization (ASLR) comes into play. ASLR is a security mechanism to prevent stack memory corruption-based vulnerabilities. ASLR randomizes the address space inside of a process, to ensure that all memory-mapped objects, the stack, the heap, and the executable program itself, are unique. Now, this is where it gets interesting because while ASLR works, it does not work for position-independent code such as DLLs. What happens with DLLs, (specifically known system DLLs) is that the address space is randomized once at boot time. This means that we don’t need to enumerate a remote process information to find the base address of its ntdll.dll because it is the same in all processes including the one that we control. Since the address of every DLL is the same place per boot, we can pull this information from our own process and never have to enumerate the suspended process to find the address.

With this information, we can use the API ReadProcessMemory to read a process’ memory. This API call is commonly associated with the reading of LSASS as part of any credential-based attack; however, on its own it is inherently not malicious, especially if we are just reading an arbitrary section of memory. The only time ReadProcessMemory will be flagged as part of something suspicious is if you are reading something you shouldn’t (like the contents of LSASS). EDR products should never flag the fact that ReadProcessMemory was called, as there are legitimate operational uses for this function and would result in many false positives.

We can take this a step further by only reading a section of Ntdll.dll where all syscalls are stored – its .text section, rather than reading the entire DLL.

Combining these elements, we can programmatically get a copy of the .text section of Ntdll.dll to overwrite our existing hooked .text section prior to executing shellcode.

ETW Patching

ETW utilizes built-in syscalls to generate this telemetry. Since ETW is also a native feature built into Windows, security products do not need to “hook” the ETW syscalls to access the information. As a result, to prevent ETW, Freeze patches numerous ETW syscalls, flushing out the registers and returning the execution flow to the next instruction. Patching ETW is now default in all loaders.

Shellcode

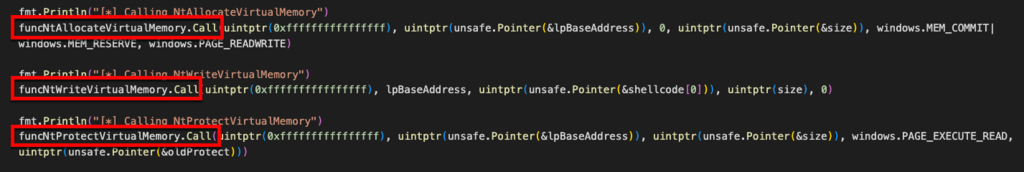

Since only Ntdll.dll is restored, all subsequent calls to execute shellcode need to reside in Ntdll.dll. Using Go (note you can do this in other languages but in Go, its quite easy to implement) we can define and call the NT syscalls needed to allocate, write, and protect the shellcode, effectively skipping the standard calls that are located in kernel32d.dll, and Kernelbase.dll, as these may still be hooked.

Install

To install Freeze, run the following commands, or use the compiled binary:

go build Freeze.go

Help

Binary vs DLL

Freeze can generate either a .exe or .dll file. In order to specify this, ensure that the -O command line option ends with either a .exe for binaries or .dll for dlls. No other file types are currently supported. In the case of DLL files, Freeze can also add additional export functionality. To do this use the -export with specific export function name.

Console

Freeze utilizes a technique to first create the process and then move it into the background. This does two things – first it helps keep the process hidden, and second, avoids being detected by any EDR product. Spawning a process right away in the background can be very suspicious and an indicator of maliciousness. Freeze does this by calling the ‘GetConsoleWindow’ and ‘ShowWindow’ Windows function after the process is created and the EDR’s hooks are loaded, and then changes the windows attributes to hidden. Freeze utilizes these APIs rather than using the traditional -ldflags -H=windowsgui, as this is highly signatured and classified in most security products as an Indicator of Compromise.

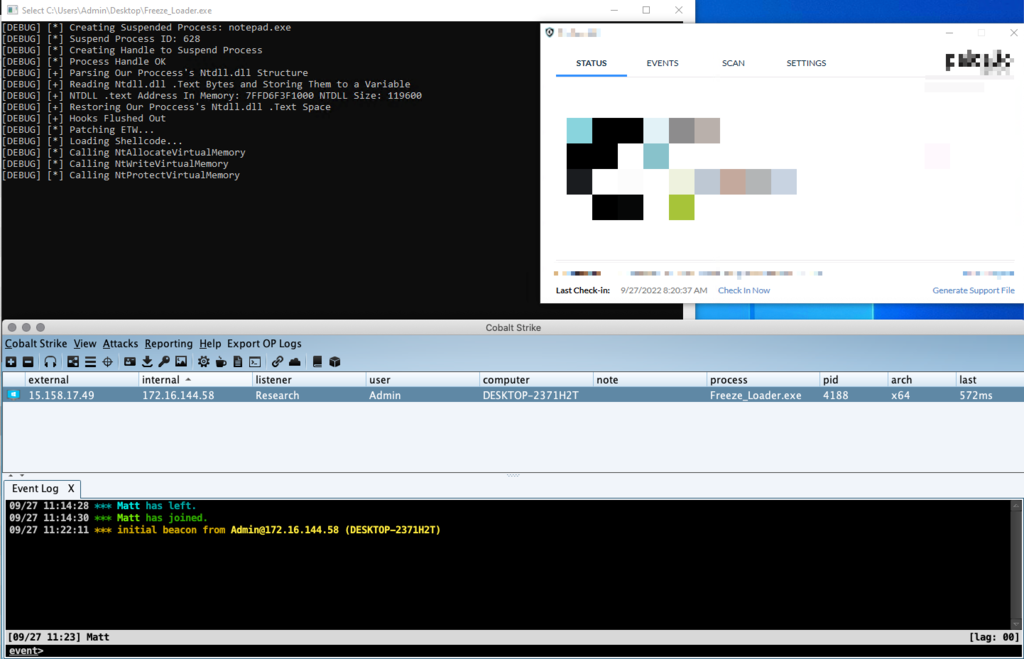

If the -console command-line option is selected, Freeze will not hide the process in the background. Instead, Freeze will add several debug messages displaying what the loader is doing.

More Information

If you want to learn more about the techniques utilized in this framework, please take a look at SourceZero Blog

Clone the repo from here: GitHub Link
